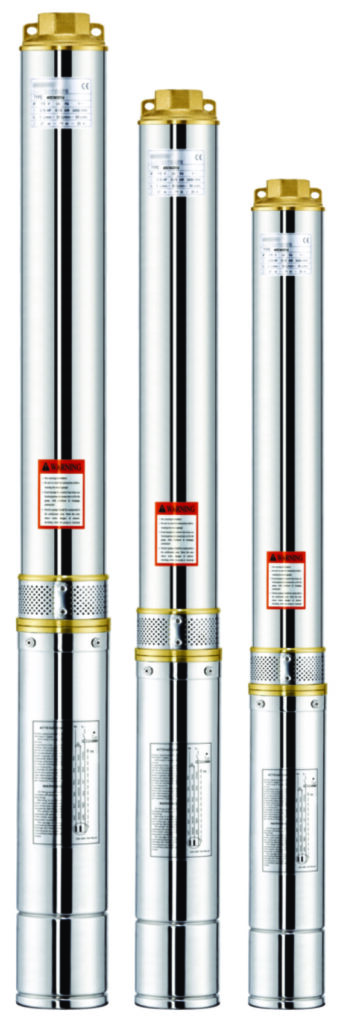

Borehole Pumps
4SD 2/9 | 4SD 2/12 | 4SD 2/15
Applications
- For water supply from wells or reservoirs
- For domestic use, for civil and industrial applications
- For garden use and irrigation
Operating conditions
- Maximum fluid temperature up to + 35°C
- Maximum sand content: 0.25%
- Minimum well diameter: 4″
Motor and Pump
- Rewindable motor
- Single-phase: 220 – 240V/50Hz
- Three-phase: 380 – 415V/50Hz
- Equip with start control box or digital auto-control box Pumps are desigend by casing stressed
- NEMA dimemension standards

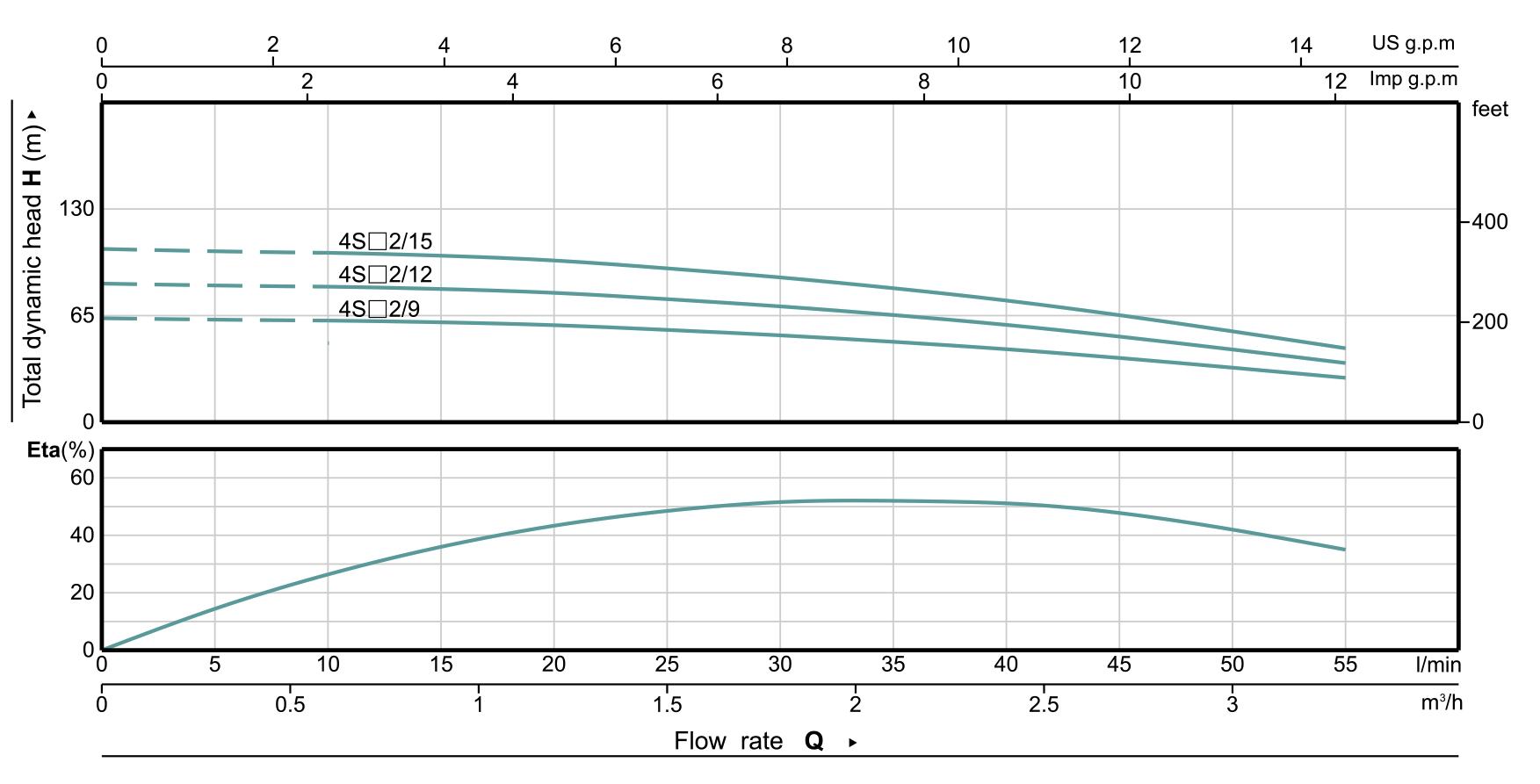

- Curve tolerance according to ISO 9906
Options on request
- Special mechanical seal
- Other voltages or frequency 60Hz
- Single phase moter with built-in capacitor
Warranty: 2 years
(according to out general sales conditions)
